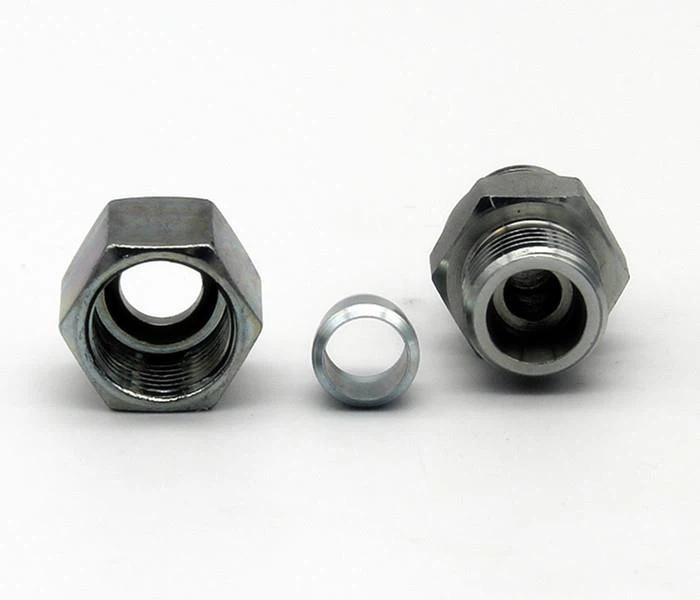

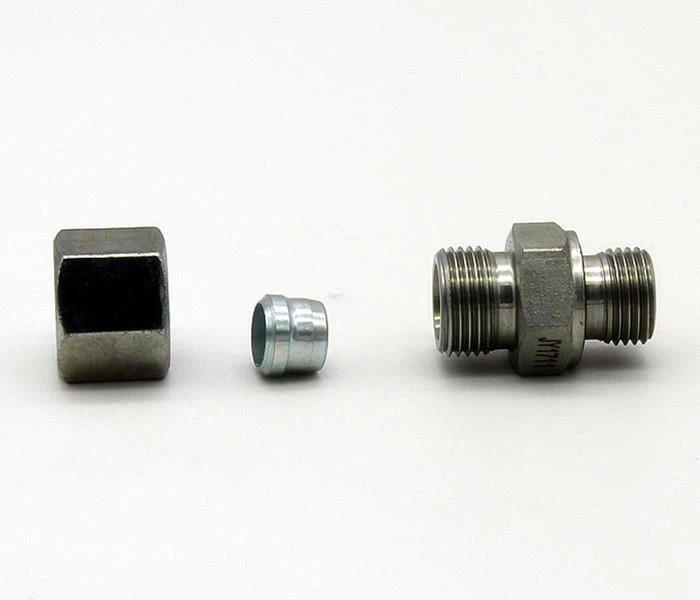

1. DIN-putkiliittimet Adapterit sisältävät metrisen urosnastan, BSPP-urosnastan, UNF-urosnastan, tiivistystyypeissä on Eolastic-tiiviste ED, O-rengas, O-rengas, jossa on kiinnitysrengas, metallileikkaus, tiivistyslevy ja kartiomainen lanka. DIN-sovittimet liitetään naarasportin päihin.
2. Tiivistysmenetelmät, urosnastat yhdistyvät naaraspuolisten porttien kanssa seuraavasti:
Litteä kasvot Stud Sealing
 |  |
 |  |
O-renkaan tiivistys viistoon
Taper Thread Sealing
3. Kaikkien satamien urosnastojen standardit:
● DIN-putkiliittimet ja adapteri on saatavana useiden rinnakkaisten kierrejoukkojen DIN-metristen litteiden pintojen (ISO 9974) kanssa; BSPP tasainen pinta (ISO 1179); SAE suorat langat (SAE J1926 / ISO 11926); ISO (ISO 6149); JIS (JIS B2351).
● DIN-liittimet, joissa on kartiomainen kierre- portti: NPT-kierre ANSI / ASME B 1.20.1-1983; BSPT-kierre ISO 7 / BS 21 / DIN 2999-1; Metrinen kierre-metriikka DIN 3852-1, Inch-kierre DIN 3852-2.
1. Hydrauliset liittimet 1CM / 1DM WD-sarja
DIN 24 ° kartio / uros metrinen kierre ED (ISO 9974)
OSA NO. | LANKA | TUBE OD | MITAT | MPa | |||||
E | F | D1 | B | l1 | L1 | S1 | S2 | ||
1cm-12-10WD | M12x1.5 | M10x1 | 6 | 8 | 8.5 | 23 | 14 | 14 | 31,5 L |
1cm-14-12WD | M14x1.5 | M12x1.5 | 8 | 12 | 10 | 25 | 17 | 17 | |
1cm-16-12WD | M16x1.5 | M12x1.5 | 10 | 12 | 11 | 25 | 17 | 19 | |
1cm-16-14WD | M16x1.5 | M14x1.5 | 10 | 12 | 11 | 26 | 19 | 19 | |
1cm-16-18WD | M16x1.5 | M18X1.5 | 10 | 12 | 12.5 | 27 | 24 | 19 | |
1cm-18-16WD | M18X1.5 | M16x1.5 | 12 | 12 | 12.5 | 27 | 22 | 22 | |
1cm-18WD | M18X1.5 | M18X1.5 | 12 | 12 | 12.5 | 27 | 24 | 22 | |
1cm-18-22WD | M18X1.5 | M22X1.5 | 12 | 14 | 14 | 29 | 27 | 22 | |
1cm-22-18WD | M22X1.5 | M18X1.5 | 15 | 12 | 13.5 | 29 | 24 | 27 | |
1cm-22WD | M22X1.5 | M22X1.5 | 15 | 14 | 15 | 30 | 27 | 27 | |
1cm-26-22WD | M26X1.5 | M22X1.5 | 18 | 14 | 14,5 | 31 | 27 | 32 | |
1cm-30-26WD | M30X2 | M26X1.5 | 22 | 16 | 16,5 | 33 | 32 | 36 | 16L |
1cm-30-27WD | M30X2 | M27X2 | 22 | 16 | 16,5 | 33 | 32 | 36 | |
1cm-36-33WD | M36X2 | M33X2 | 28 | 18 | 17.5 | 34 | 41 | 41 | |
1cm-45-42WD | M45X2 | M42X2 | 35 | 20 | 17.5 | 39 | 50 | 50 | |
1cm-52-48WD | M52X2 | M48X2 | 42 | 22 | 19 | 42 | 55 | 60 | |
1DM-14-12WD | M14x1.5 | M12x1.5 | 6 | 12 | 13 | 28 | 17 | 17 | 63S |
1DM-16-14WD | M16x1.5 | M14x1.5 | 8 | 12 | 15 | 30 | 19 | 19 | |
1DM-18-16WD | M18X1.5 | M16x1.5 | 10 | 12 | 15 | 31 | 22 | 22 | |
1DM-20-18WD | M20x1,5 | M18X1.5 | 12 | 12 | 17 | 33 | 24 | 24 | |
1DM-22-20WD | M22X1.5 | M20x1,5 | 14 | 14 | 19 | 37 | 27 | 27 | |
1DM-24-22WD | M24X1.5 | M22X1.5 | 16 | 14 | 18,5 | 37 | 27 | 30 | 40S |
1DM-30-27WD | M30X2 | M27X2 | 20 | 16 | 20.5 | 42 | 32 | 36 | |
1DM-36-33WD | M36X2 | M33X2 | 25 | 18 | 23 | 47 | 41 | 46 | |
1DM-42WD | M42X2 | M42X2 | 30 | 20 | 23.5 | 50 | 50 | 50 | |
1DM-52-48WD | M52X2 | M48X2 | 38 | 22 | 26 | 57 | 55 | 60 | 31.5S |
Huomautus: Jos olet kiinnostunut tilaamaan sovittimen täydelliseen sarjaan leikkurirenkaalla ja mutterilla, on tarpeen lisätä jälkiliite "RN" osan nro. esimerkiksi 1DM-20-18WD / RN. | |||||||||
2. Hydrauliset liittimet 1CB / 1DB WD-sarja
DIN 24 ° kartio / uros BSPP-kierre ED-tiiviste (ISO 1179)
OSA NO. | LANKA | TUBE OD | MITAT | MPa | |||||
E | F | D1 | B | l1 | L1 | S1 | S2 | ||
1cb-12-02WD | M12x1.5 | G1 / 8" X28 | 6 | 8 | 8.5 | 23.5 | 14 | 14 | 31.5L |
1cb-12-04WD | M12x1.5 | G1 / 4" X19 | 6 | 12 | 10 | 25 | 19 | 14 | |
1cb-12-06WD | M12x1.5 | G3 / 8" X19 | 6 | 12 | 11.5 | 26.5 | 22 | 14 | |
1cb-14-02WD | M14x1.5 | G1 / 8" X28 | 8 | 8 | 9 | 24 | 14 | 17 | |
1cb-14-04WD | M14x1.5 | G1 / 4" X19 | 8 | 12 | 10 | 24 | 19 | 17 | |
1cb-14-06WD | M14x1.5 | G3 / 8" X19 | 8 | 12 | 11 | 26 | 22 | 17 | |
1cb-16-04WD | M16x1.5 | G1 / 4" X19 | 10 | 12 | 11 | 24,5 | 19 | 19 | |
1cb-16-06WD | M16x1.5 | G3 / 8" X19 | 10 | 12 | 12.5 | 26 | 22 | 19 | |
1cb-16-08WD | M16x1.5 | G1 / 2" X14 | 10 | 14 | 13 | 28 | 27 | 19 | |
1cb-18-04WD | M18X1.5 | G1 / 4" X19 | 12 | 12 | 12 | 27 | 19 | 22 | |
1cb-18-06WD | M18X1.5 | G3 / 8" X19 | 12 | 12 | 12.5 | 26 | 22 | 22 | |
1cb-18-08WD | M18X1.5 | G1 / 2" X14 | 12 | 14 | 14 | 28 | 27 | 22 | |
1cb-22-04WD | M22X1.5 | G1 / 4" X19 | 15 | 12 | 13 | 28 | 24 | 27 | |
1cb-22-06WD | M22X1.5 | G3 / 8" X19 | 15 | 12 | 13.5 | 28 | 24 | 27 | |
1cb-22-08WD | M22X1.5 | G1 / 2" X14 | 15 | 14 | 14 | 29 | 27 | 27 | |
1cb-22-12WD | M22X1.5 | G3 / 4" X14 | 15 | 16 | 15 | 29 | 32 | 27 | |
1cb-26-08WD | M26X1.5 | G1 / 2" X14 | 18 | 14 | 14,5 | 31 | 27 | 32 | |
1cb-26-12WD | M26X1.5 | G3 / 4" X14 | 18 | 16 | 14,5 | 31 | 32 | 32 | |
1cb-30-12WD | M30X2 | G3 / 4" X14 | 22 | 16 | 16,5 | 33 | 32 | 36 | 16L |
1cb-36-16WD | M36X2 | G1" X11 | 28 | 18 | 17.5 | 34 | 41 | 41 | |
1cb-45-20WD | M45X2 | G1.1 / 4" X11 | 35 | 20 | 17.5 | 39 | 50 | 50 | |
1cb-52-24WD | M52X2 | G1.1 / 2" X11 | 42 | 22 | 19 | 42 | 55 | 60 | |
1DB-14-04WD | M14x1.5 | G1 / 4" X19 | 6 | 12 | 15 | 19 | 17 | 63S | |
1DB-16-04WD | M16x1.5 | G1 / 4" X19 | 8 | 12 | 15 | 30 | 19 | 19 | |
1DB-16-06WD | M16x1.5 | G3 / 8" X19 | 8 | 12 | 15,5 | 30 | 22 | 19 | |
1DB-18-04WD | M18X1.5 | G1 / 4" X19 | 10 | 12 | 14,5 | 31 | 19 | 22 | |
1DB-18-06WD | M18X1.5 | G3 / 8" X19 | 10 | 12 | 14,5 | 31 | 22 | 22 | |
1DB-18-08WD | M18X1.5 | G1 / 2" X14 | 10 | 14 | 17.5 | 34 | 27 | 22 | |
1DB-20-04WD | M20x1,5 | G1 / 4" X19 | 12 | 12 | 16,5 | 33 | 22 | 24 | |
1DB-20-06WD | M20x1,5 | G3 / 8" X19 | 12 | 12 | 15 | 33 | 22 | 24 | |
1DB-20-08WD | M20x1,5 | G1 / 2" X14 | 12 | 14 | 17.5 | 34 | 27 | 24 | |
1DB-22-08WD | M22X1.5 | G1 / 2" X14 | 14 | 14 | 19 | 37 | 27 | 27 | |
1DB-24-06WD | M24X1.5 | G3 / 8" X19 | 16 | 12 | 18 | 36,5 | 27 | 30 | 40S |
1DB-24-08WD | M24X1.5 | G1 / 2" X14 | 16 | 14 | 18,5 | 37 | 27 | 30 | |
1DB-24-12WD | M24X1.5 | G3 / 4" X14 | 16 | 16 | 20.5 | 39 | 32 | 30 | |
1DB-30-12WD | M30X2 | G3 / 4" X14 | 20 | 16 | 20.5 | 42 | 32 | 36 | |
1DB-36-08WD | M36X2 | G1 / 2" X14 | 25 | 14 | 23 | 47 | 41 | 46 | |
1DB-36-12WD | M36X2 | G3 / 4" X14 | 25 | 16 | 23 | 47 | 41 | 46 | |
1DB-36-16WD | M36X2 | G1" X11 | 25 | 18 | 23 | 47 | 41 | 46 | |
1DB-42-20WD | M42X2 | G1.1 / 4" X11 | 30 | 20 | 23.5 | 50 | 50 | 50 | |
1DB-52-24WD | M52X2 | G1.1 / 2" X11 | 38 | 22 | 26 | 57 | 55 | 60 | 31.5S |
Huomautus: Jos olet kiinnostunut tilaamaan sovittimen täydelliseen sarjaan leikkurirenkaalla ja mutterilla, on tarpeen lisätä jälkiliite "RN" osan nro. esimerkiksi 1DB-20-08WD / RN. | |||||||||
3. Hydrauliset liittimet 1CO / 1DO-sarja
DIN 24 ° kartio / uros UNF / UN-kierre O-rengas (ISO 11926)
OSA NO. | LANKA | TUBE OD | MITAT | MPa | |||||
E | F | D1 | B | l1 | L1 | S1 | S2 | ||
1CO-14-04 | M14x1.5 | 7/16" X20 | 8 | 9 | 10 | 25 | 17 | 17 | 31,5 L |
1CO-16-04 | M16x1.5 | 7/16" X20 | 10 | 9 | 11 | 26 | 17 | 19 | |
1CO-18-06 | M18X1.5 | 9/16" X18 | 12 | 10 | 11 | 26 | 19 | 22 | |
1CO-18-08 | M18X1.5 | 3/4" X16 | 12 | 11 | 13 | 28 | 24 | 22 | |
1CO-18-10 | M18X1.5 | 7/8" X14 | 12 | 12,7 | 14.3 | 29 | 27 | 22 | |
1CO-22-08 | M22X1.5 | 3/4" X16 | 15 | 11 | 14 | 29 | 24 | 27 | |
1CO-22-10 | M22X1.5 | 7/8" X14 | 15 | 12,7 | 15.3 | 30 | 27 | 27 | |
1CO-22-12 | M22X1.5 | 1,1 / 16" X12 | 15 | 15.09 | 11,91 | 30 | 32 | 27 | |
1CO-26-08 | M26X1.5 | 3/4" X16 | 18 | 11 | 14,5 | 31 | 27 | 32 | |
1CO-26-10 | M26X1.5 | 7/8" X14 | 18 | 12,7 | 14,8 | 31 | 27 | 32 | |
1CO-30-08 | M30X2 | 3/4" X16 | 18 | 11.13 | 13.87 | 33 | 32 | 36 | 16L |
1CO-30-10 | M30X2 | 7/8" X14 | 22 | 12,7 | 16.8 | 33 | 32 | 36 | |
1CO-30-12 | M30X2 | 1,1 / 16" X12 | 22 | 15 | 16,5 | 33 | 32 | 36 | |
1CO-30-16 | M30X2 | 1,5 / 16" X12 | 22 | 15 | 17.5 | 34 | 41 | 36 | |
1CO-36-12 | M36X2 | 1,1 / 16" X12 | 28 | 15.09 | 14.41 | 34 | 41 | 41 | |
1CO-36-16 | M36X2 | 1,5 / 16" X12 | 28 | 15 | 17.5 | 34 | 41 | 41 | |
1CO-45-16 | M45X2 | 1,5 / 16" X12 | 35 | 15 | 17.5 | 39 | 46 | 50 | |
1CO-45-20 | M45X2 | 1,5 / 8" X12 | 35 | 15.09 | 16.41 | 39 | 50 | 50 | |
1CO-52-20 | M52X2 | 1,5 / 8" X12 | 42 | 15.09 | 15.91 | 42 | 55 | 60 | |
1Älä-16-04 | M16x1.5 | 7/16" X20 | 8 | 9 | 15 | 30 | 17 | 19 | 63S |
1Älä-18-06 | M18X1.5 | 9/16" X18 | 10 | 10 | 14,5 | 31 | 19 | 22 | |
1Älä-20-06 | M20x1,5 | 9/16" X18 | 12 | 10 | 14,5 | 31 | 22 | 24 | |
1Älä-20-08 | M20x1,5 | 3/4" X16 | 12 | 11 | 17.5 | 34 | 24 | 24 | |
1Älä-24-08 | M24X1.5 | 3/4" X16 | 16 | 11 | 15,5 | 34 | 24 | 30 | 40S |
1Älä-24-10 | M24X1.5 | 7/8" X14 | 16 | 12,7 | 18.8 | 37 | 27 | 30 | |
1Älä-30-08 | M30X2 | 3/4" X16 | 20 | 11 | 20.5 | 42 | 32 | 36 | |
1Älä-30-10 | M30X2 | 7/8" X14 | 20 | 12,7 | 20.8 | 42 | 32 | 36 | |
1Älä-30-12 | M30X2 | 1,1 / 16" X12 | 20 | 15 | 20.5 | 42 | 32 | 36 | |
1Älä-36-12 | M36X2 | 1,1 / 16" X12 | 25 | 15.09 | 19.91 | 47 | 41 | 46 | |
1Älä-36-16 | M36X2 | 1,5 / 16" X12 | 25 | 15 | 23 | 47 | 41 | 46 | |
1Älä-42-16 | M42X2 | 1,5 / 16" X12 | 30 | 15 | 23.5 | 50 | 46 | 50 | |
1Älä-42-20 | M42X2 | 1,5 / 8" X12 | 30 | 15 | 23.5 | 50 | 50 | 50 | |
1Älä-52-20 | M52X2 | 1,5 / 8" X12 | 38 | 15.09 | 22,9 | 53.9 | 55 | 60 | 31.5S |
Huomautus: Jos olet kiinnostunut tilaamaan sovittimen täydelliseen sarjaan leikkurirenkaalla ja mutterilla, on tarpeen lisätä jälkiliite "RN" osan nro. esimerkiksi 1C9-30RN. | |||||||||
4. Hydrauliset liittimet 1CB / 1DB-sarja
DIN 24 ° kartio / uros BSP-kierre Bonded Washer Seal DIN 3852-2
OSA NO. | LANKA | TUBE OD | MITAT | MPa | ||||||
E | F | D1 | B | l1 | L1 | L | S1 | S2 | ||
1cb-12-02 | M12x1.5 | G1 / 8" X28 | 6 | 10 | 8 | 23 | 24 | 14 | 14 | 31.5L |
1cb-12-04 | M12x1.5 | G1 / 4" X19 | 6 | 12 | 9 | 24 | 28 | 19 | 14 | |
1cb-14-02 | M14x1.5 | G1 / 8" X28 | 8 | 10 | 8 | 23 | 25 | 14 | 17 | |
1cb-14-04 | M14x1.5 | G1 / 4" X19 | 8 | 12 | 9 | 25 | 28 | 19 | 17 | |
1cb-14-06 | M14x1.5 | G3 / 8" X19 | 8 | 13.5 | 9 | 24 | 28.5 | 22 | 17 | |
1cb-16-04 | M16x1.5 | G1 / 4" X19 | 10 | 12 | 10 | 25 | 28 | 19 | 19 | |
1cb-16-06 | M16x1.5 | G3 / 8" X19 | 10 | 13.5 | 12.5 | 25 | 33 | 22 | 19 | |
1cb-16-08 | M16x1.5 | G1 / 2" X14 | 10 | 16 | 11 | 26 | 32 | 27 | 19 | |
1cb-18-04 | M18X1.5 | G1 / 4" X19 | 12 | 12 | 10 | 25 | 29 | 19 | 22 | |
1cb-18-06 | M18X1.5 | G3 / 8" X19 | 12 | 13.5 | 10 | 25 | 30,5 | 22 | 22 | |
1cb-18-08 | M18X1.5 | G1 / 2" X14 | 12 | 16 | 11 | 26 | 33 | 27 | 22 | |
1cb-18-12 | M18X1.5 | G3 / 4" X14 | 12 | 18,5 | 11 | 26 | 36,5 | 32 | 22 | |
1cb-22-06 | M22X1.5 | G3 / 8" X19 | 15 | 13.5 | 11 | 26 | 31,5 | 24 | 27 | |
1cb-22-08 | M22X1.5 | G1 / 2" X14 | 15 | 16 | 12 | 27 | 34 | 27 | 27 | |
1cb-26-08 | M26X1.5 | G1 / 2" X14 | 18 | 16 | 11.5 | 28 | 35 | 27 | 32 | |
1cb-26-12 | M26X1.5 | G3 / 4" X14 | 18 | 18,5 | 11.5 | 28 | 35.5 | 32 | 32 | |
1cb-30-12 | M30X2 | G3 / 4" X14 | 22 | 18,5 | 13.5 | 30 | 39.5 | 32 | 36 | 16L |
1cb-36-16 | M36X2 | G1" X11 | 28 | 20.5 | 14,5 | 31 | 42.5 | 41 | 41 | |
1cb-45-20 | M45X2 | G1.1 / 4" X11 | 35 | 20.5 | 15,5 | 37 | 45.5 | 50 | 50 | |
1cb-52-24 | M52X2 | G1.1 / 2" X11 | 42 | 23 | 16 | 39 | 50 | 55 | 60 | |
1DB-14-04 | M14x1.5 | G1 / 4" X19 | 6 | 12 | 13 | 28 | 30 | 19 | 17 | 63S |
1DB-16-04 | M16x1.5 | G1 / 4" X19 | 8 | 12 | 13 | 28 | 32 | 19 | 19 | |
1DB-16-06 | M16x1.5 | G3 / 8" X19 | 8 | 13.5 | 15 | 32 | 35.5 | 22 | 19 | |
1DB-18-04 | M18X1.5 | G1 / 4" X19 | 10 | 12 | 12.5 | 29 | 32 | 19 | 22 | |
1DB-18-06 | M18X1.5 | G3 / 8" X19 | 10 | 13.5 | 14,5 | 31 | 33.5 | 22 | 22 | |
1DB-18-08 | M18X1.5 | G1 / 2" X14 | 10 | 16 | 14,5 | 31 | 36 | 27 | 22 | |
1DB-20-04 | M20x1,5 | G1 / 4" X19 | 12 | 12 | 14,5 | 31 | 34 | 22 | 24 | |
1DB-20-06 | M20x1,5 | G3 / 8" X19 | 12 | 13.5 | 14,5 | 31 | 35.5 | 22 | 24 | |
1DB-20-08 | M20x1,5 | G1 / 2" X14 | 12 | 16 | 14,5 | 31 | 38 | 27 | 24 | |
1DB-22-08 | M22X1.5 | G1 / 2" X14 | 14 | 16 | 16 | 34 | 40 | 27 | 27 | |
1DB-24-06 | M24X1.5 | G3 / 8" X19 | 16 | 13.5 | 15,5 | 34 | 37.5 | 27 | 30 | 40S |
1DB-24-08 | M24X1.5 | G1 / 2" X14 | 16 | 16 | 15,5 | 34 | 40 | 27 | 30 | |
1DB-24-12 | M24X1.5 | G3 / 4" X14 | 16 | 18,5 | 17.5 | 36 | 44.5 | 32 | 30 | |
1DB-30-12 | M30X2 | G3 / 4" X14 | 20 | 18,5 | 17.5 | 39 | 48.5 | 32 | 36 | |
1DB-36-08 | M36X2 | G1 / 2" X14 | 25 | 16 | 19 | 43 | 48 | 38 | 46 | |
1DB-36-12 | M36X2 | G3 / 4" X14 | 25 | 18,5 | 19 | 43 | 50.5 | 38 | 46 | |
1DB-36-16 | M36X2 | G1" X11 | 25 | 20.5 | 20 | 44 | 52.5 | 41 | 46 | |
1DB-42-20 | M42X2 | G1.1 / 4" X11 | 30 | 20.5 | 21.5 | 48 | 54.5 | 50 | 50 | |
1DB-52-24 | M52X2 | G1.1 / 2" X11 | 38 | 23 | 23 | 54 | 62 | 55 | 60 | 31.5S |
Huomautus: Jos olet kiinnostunut tilaamaan sovittimen täydelliseen sarjaan leikkurirenkaalla ja mutterilla, on tarpeen lisätä jälkiliite "RN" osan nro. esimerkiksi 1DB-20-08RN. | ||||||||||
5. Hydrauliset liittimet 1CH / 1DH-sarja
DIN 24 ° kartio / uros Metrinen kierre O-rengas DIN ISO 6149 nastainen
OSA NO. | LANKA | TUBE OD | O RING | MITAT | MPa | |||||
E | F | D1 | B | l1 | L1 | S1 | S2 | |||
1 CH-12-10 | M12x1.5 | M10x1 | 6 | O08.1X1.6 | 8.5 | 9,5 | 23 | 14 | 14 | 31.5L |
1 CH-14 | M14x1.5 | M14x1.5 | 8 | O11.3X2.4 | 11 | 10 | 25 | 19 | 17 | |
1 CH-14-12 | M14x1.5 | M12x1.5 | 8 | O09.3X2.4 | 11 | 10 | 25 | 17 | 17 | |
1 CH-16-14 | M16x1.5 | M14x1.5 | 10 | O11.3X2.4 | 11 | 13 | 26 | 19 | 19 | |
1 CH-18-14 | M18X1.5 | M14x1.5 | 12 | O11.3X2.4 | 11 | 11 | 25.5 | 19 | 22 | |
1 CH-14-18 | M14x1.5 | M18X1.5 | 8 | O15.3X2.4 | 12.5 | 11.5 | 26.5 | 24 | 17 | |
1 CH-16 | M16x1.5 | M16x1.5 | 10 | O13.3X2.4 | 11.5 | 13 | 28 | 22 | 19 | |
1 CH-16-18 | M16x1.5 | M18X1.5 | 10 | O15.3X2.4 | 12.5 | 12.5 | 28 | 24 | 19 | |
1 CH-18-16 | M18X1.5 | M16x1.5 | 12 | O13.3X2.4 | 11.5 | 12 | 27 | 22 | 22 | |
1 CH-22-16 | M22X1.5 | M16x1.5 | 15 | O13.3X2.4 | 11.5 | 13.5 | 29.5 | 24 | 27 | |
1 CH-22-18 | M22X1.5 | M18X1.5 | 15 | O15.3X2.4 | 12.5 | 13.5 | 29 | 24 | 27 | |
1 CH-16-22 | M16x1.5 | M22X1.5 | 10 | O19.3X2.4 | 13 | 14 | 29.5 | 27 | 19 | |
1 CH-22-20 | M22X1.5 | M20x1,5 | 15 | O17.3X2.4 | 12 | 15 | 30,5 | 27 | 27 | |
1 CH-22 | M22X1.5 | M22X1.5 | 15 | O19.3X2.4 | 13 | 15 | 31 | 27 | 27 | |
1 CH-26-22 | M26X1.5 | M22X1.5 | 18 | O19.3X2.4 | 13 | 14,5 | 31 | 27 | 32 | |
1 CH-26 | M26X1.5 | M26X1.5 | 18 | O23.5X3.0 | 13.5 | 13.5 | 31 | 32 | 32 | |
1 CH-26-27 | M26X1.5 | M27X2 | 18 | O23.5X3.0 | 16 | 14,5 | 32 | 32 | 32 | |
1 CH-26-33 | M26X1.5 | M33X2 | 18 | O29.5X3.0 | 16 | 15,5 | 33 | 41 | 32 | |
1 CH-30-22 | M30X2 | M22X1.5 | 22 | O19.3X2.4 | 13 | 17.5 | 33 | 32 | 41 | 16L |
1 CH-30-27 | M30X2 | M27X2 | 22 | O23.5X3.0 | 16 | 16,5 | 33 | 32 | 36 | |
1 CH-30 | M30X2 | M30X2 | 22 | O26.5X3.0 | 16 | 17.5 | 33 | 36 | 36 | |
1 CH-36-27 | M36X2 | M27X2 | 28 | O23.5X3.0 | 16 | 17.5 | 34 | 41 | 41 | |
1 CH-36-33 | M36X2 | M33X2 | 28 | O29.5X3.0 | 16 | 17.5 | 34 | 41 | 41 | |
1 CH-36-42 | M36X2 | M42X2 | 28 | O38.5X3.0 | 16 | 18,5 | 35 | 50 | 41 | |
1 CH-45-33 | M45X2 | M33X2 | 35 | O29.5X3.0 | 16 | 17.5 | 37 | 46 | 50 | |
1 CH-45-42 | M45X2 | M42X2 | 35 | O38.5X3.0 | 16 | 17.5 | 37 | 50 | 50 | |
1 CH-52-48 | M52X2 | M48X2 | 42 | O44.5X3.0 | 17.5 | 19 | 55 | 60 | ||
1DH-14 | M14x1.5 | M14x1.5 | 6 | O11.3X2.4 | 11 | 15 | 28 | 19 | 17 | 63S |
1DH-14-12 | M14x1.5 | M12x1.5 | 6 | O09.3X2.4 | 11 | 13 | 28 | 17 | 17 | |
1DH-16-14 | M16x1.5 | M14x1.5 | 8 | O11.3X2.4 | 11 | 15 | 30 | 19 | 19 | |
1DH-18-16 | M18X1.5 | M16x1.5 | 10 | O13.3X2.4 | 11.5 | 15 | 31 | 22 | 22 | |
1DH-20-14 | M20x1,5 | M14x1.5 | 12 | O11.3X2.4 | 11 | 15 | 31 | 22 | 24 | |
1DH-20-16 | M20x1,5 | M16x1.5 | 12 | O13.3X2.4 | 11.5 | 15 | 31 | 22 | 24 | |
1DH-20-18 | M20x1,5 | M18X1.5 | 12 | O15.3X2.4 | 12.5 | 17 | 33 | 24 | 24 | |
1DH-20-22 | M20x1,5 | M22X1.5 | 12 | O19.3X2.4 | 13 | 17.5 | 35 | 27 | 30 | |
1DH-24-22 | M24X1.5 | M22X1.5 | 16 | O19.3X2.4 | 13 | 18,5 | 37 | 27 | 30 | 40S |
1DH-30 | M30X2 | M30X2 | 20 | O26.5X3.0 | 16 | 20.5 | 42 | 36 | 36 | |
1DH-30-27 | M30X2 | M27X2 | 20 | O23.5X3.0 | 16 | 20.5 | 42 | 32 | 36 | |
1DH-30-33 | M30X2 | M33X2 | 20 | 16 | 22,5 | 42 | 41 | 36 | ||
1DH-36-27 | M36X2 | M27X2 | 25 | O23.5X3.0 | 16 | 23 | 47 | 41 | 46 | |
1DH-36-33 | M36X2 | M33X2 | 25 | O29.5X3.0 | 16 | 23 | 47 | 41 | 46 | |
1DH-42 | M42X2 | M42X2 | 30 | O38.5X3.0 | 16 | 23.5 | 50 | 50 | 50 | |
1DH-42-48 | M42X2 | M48X2 | 30 | O44.5X3.0 | 17.5 | 26.5 | 52 | 55 | 50 | |
6. Hydrauliset liittimet 1CT / 1DT-sarja
DIN 24 ° kartiomainen pää / Mies lyhyt BSPT-kartiomainen kierre (DIN 3852-2, tyyppi C)
OSA NO. | LANKA | TUBE OD | MITAT | MPa | ||||
E | F | D | l1 | L1 | S1 | S2 | ||
1CT-12-02SP | M12x1.5 | R1 / 8" x28 | 6 | 13 | 28 | 12 | 14 | 31.5L |
1CT-12-04SP | M12x1.5 | R1 / 4" x19 | 8 | 8 | 14 | 14 | ||
1CT-14-04SP | M14x1.5 | R1 / 4" x19 | 8 | 16,5 | 31,5 | 14 | 17 | |
1CT-14-06SP | M14x1.5 | R3 / 8" x19 | 8 | 17.6 | 32.6 | 19 | 17 | |
1CT-16-04SP | M16x1,5 | R1 / 4" x19 | 10 | 17.5 | 32.5 | 17 | 19 | |
1CT-16-06SP | M16x1,5 | R3 / 8" x19 | 10 | 18,6 | 33.6 | 19 | 19 | |
1CT-16-08SP | M16x1,5 | R1 / 2" x14 | 10 | 21.8 | 36,8 | 22 | 19 | |
1CT-16-12SP | M16x1,5 | R3 / 4" x14 | 10 | 21.5 | 36,5 | 30 | 19 | |
1CT-18-04SP | M18x1.5 | R1 / 4" x19 | 12 | 18,5 | 33.5 | 19 | 22 | |
1CT-18-06SP | M18x1.5 | R3 / 8" x19 | 12 | 18,6 | 33.6 | 19 | 22 | |
1CT-18-08SP | M18x1.5 | R1 / 2" x14 | 12 | 21.8 | 36,8 | 22 | 22 | |
1CT-22-08SP | M22x1.5 | R1 / 2" x14 | 15 | 22.8 | 37.8 | 24 | 27 | |
1CT-26-08SP | M26x1.5 | R1 / 2" x14 | 18 | 23,3 | 39.8 | 27 | 32 | 16L |
1CT-26-12SP | M26x1.5 | R3 / 4" x14 | 18 | 22 | 38.5 | 30 | 32 | |
1CT-30-12SP | M30x2 | R3 / 4" x14 | 22 | 24 | 40.5 | 32 | 36 | |
1CT-36-16SP | M36x2 | R1" x11 | 28 | 29,6 | 46,1 | 38 | 41 | |
1CT-36-20SP | M36x2 | R1.1 / 4" X11 | 28 | 29,3 | 45.8 | 46 | 41 | |
1CT-45-16SP | M45x2 | R1" x11 | 35 | 29,6 | 51,1 | 46 | 50 | |
1CT-45-20SP | M45x2 | R1.1 / 4" X11 | 35 | 28,3 | 49,8 | 46 | 50 | |
1CT-52-20SP | M52x2 | R1.1 / 4" X11 | 42 | 29.8 | 52.8 | 55 | 60 | |
1CT-52-24SP | M52x2 | R1.1 / 2" x11 | 42 | 29.8 | 52.8 | 55 | 60 | |
1DT-14-04SP | M14x1.5 | R1 / 4" x19 | 6 | 13 | 36,5 | 17 | 17 | 63S |
1DT-16-04SP | M16x1,5 | R1 / 4" x19 | 8 | 21.5 | 36,5 | 17 | 19 | |
1DT-18-04SP | M18x1.5 | R1 / 4" x19 | 10 | 21 | 37.5 | 19 | 22 | |
1DT-20-04SP | M20x1,5 | R1 / 4" x19 | 12 | 23 | 39.5 | 22 | 24 | |
1DT-20-06SP | M20x1,5 | R3 / 8" x19 | 12 | 23.1 | 39.6 | 22 | 24 | |
1DT-22-06SP | M22x1.5 | R3 / 8" x19 | 14 | 24.6 | 42.6 | 24 | 27 | |
1DT-22-08SP | M22x1.5 | R1 / 2" x14 | 14 | 27,8 | 45.8 | 24 | 27 | |
1DT-24-06SP | M24x1.5 | R3 / 8" x19 | 16 | 24.1 | 42.6 | 27 | 30 | |
1DT-24-08SP | M24x1.5 | R1 / 2" x14 | 16 | 27,3 | 45.8 | 27 | 30 | |
1DT-30-12SP | M30x2 | R3 / 4" x14 | 20 | 28 | 49.5 | 32 | 36 | 40S |
1DT-36-12SP | M36x2 | R3 / 4" x14 | 25 | 29.5 | 53.5 | 38 | 46 | |
1DT-36-16SP | M36x2 | R1" x11 | 25 | 34,1 | 58,1 | 38 | 46 | |
1DT-42-16SP | M42x2 | R1" x11 | 30 | 35.6 | 62,1 | 46 | 50 | |
1DT-42-20SP | M42x2 | R1.1 / 4" X11 | 30 | 34.3 | 60.8 | 46 | 50 | |
1DT-52-20SP | M52x2 | R1.1 / 4" X11 | 38 | 36,8 | 67,8 | 55 | 60 | |
1DT-52-24SP | M52x2 | R1.1 / 2" x11 | 38 | 36,8 | 67,8 | 55 | 60 | |
Huomautus Jos olet halunnut tilata sovittimen täydelliseen sarjaan leikkuurenkaalla ja mutterilla, on välttämätöntä lisätä jälkiliite "RN" osan nro. esimerkiksi 1DT-22-08SP / RN. | ||||||||
7. Hydrauliset liittimet 1CN / 1DN-sarja
DIN 24 ° kartio / uros NPT-kierre (SAE J476)
OSA NO. | LANKA | TUBE OD | MITAT | MPa | ||||
E | F | D1 | l1 | L1 | S1 | S2 | ||
1CN-08-02 | M8x1 | Z1 / 8" X27 | 4 | 14.4 | 24,4 | 11 | 10 | 10LL |
1CN-10-02LL | M10x1 | Z1 / 8" X27 | 6 | 12.9 | 24,4 | 11 | 12 | |
1CN-12-02LL | M12x1 | Z1 / 8" X27 | 8 | 13.9 | 25,4 | 12 | 14 | |
1CN-12-02 | M12x1.5 | Z1 / 8" X27 | 6 | 13.4 | 28,4 | 12 | 14 | 31. 5L |
1CN-12-04 | M12x1.5 | Z1 / 4" X18 | 6 | 17.2 | 32.2 | 17 | 14 | |
1CN-14-04 | M14x1.5 | Z1 / 4" X18 | 8 | 17.2 | 32.2 | 14 | 17 | |
1CN-16-04 | M16x1.5 | Z1 / 4" X18 | 10 | 18,2 | 33.2 | 17 | 19 | |
1CN-16-06 | M16x1.5 | Z3 / 8" X18 | 10 | 19.9 | 53,0 | 19 | 19 | |
1CN-18-04 | M18X1.5 | Z1 / 4" X18 | 12 | 19.2 | 34.2 | 19 | 22 | |
1CN-18-06 | M18X1.5 | Z3 / 8" X18 | 12 | 19.9 | 34.9 | 19 | 22 | |
1CN-18-08 | M18X1.5 | Z1 / 2" X14 | 12 | 21.4 | 36.4 | 22 | 22 | |
1CN-22-08 | M22X1.5 | Z1 / 2" X14 | 15 | 22,4 | 37.4 | 24 | 27 | |
1CN-22-20 | M22X1.5 | Z1.1 / 4" X11.5 | 15 | 29.8 | 37.4 | 46 | 27 | |
1CN-26-08 | M26X1.5 | Z1 / 2" X14 | 18 | 22,9 | 39.4 | 27 | 32 | 16L |
1CN-26-12 | M26X1.5 | Z3 / 4" X14 | 18 | 22,4 | 38.9 | 30 | 32 | |
1CN-30-08 | M30X2 | Z1 / 2" X14 | 22 | 24,4 | 40.5 | 32 | 36 | |
1CN-30-12 | M30X2 | Z3 / 4" X14 | 22 | 24,4 | 40.9 | 32 | 36 | |
1CN-36-16 | M36X2 | Z1" X11.5 | 28 | 29.8 | 46.3 | 41 | 41 | |
1CN-36-20 | M36X2 | Z1.1 / 4" X11.5 | 28 | 31,3 | 46.3 | 46 | 41 | |
1CN-45-20 | M45X2 | Z1.1 / 4" X11.5 | 35 | 30,3 | 51,8 | 46 | 50 | |
1CN-52-20 | M52X2 | Z1.1 / 4" X11.5 | 42 | 31,8 | 55.8 | 55 | 60 | |
1CN-52-24 | M52X2 | Z1.1 / 2" X11.5 | 42 | 32.8 | 55.8 | 55 | 60 | |
1DN-14-04 | M14x1.5 | Z1 / 4" X18 | 6 | 22.2 | 37.2 | 17 | 17 | 63S |
1DN-16-04 | M16x1.5 | Z1 / 4" X18 | 8 | 22.2 | 37.2 | 17 | 19 | |
1DN-18-04 | M18X1.5 | Z1 / 4" X18 | 10 | 21,7 | 38,2 | 19 | 22 | |
1DN-18-06 | M18X1.5 | Z3 / 8" X18 | 10 | 22,4 | 38.9 | 19 | 22 | |
1DN-20-04 | M20x1,5 | Z1 / 4" X18 | 12 | 23,7 | 40.2 | 22 | 24 | |
1DN-20-06 | M20x1,5 | Z3 / 8" X18 | 12 | 24,4 | 40.9 | 22 | 24 | |
1DN-20-08 | M20x1,5 | Z1 / 2" X14 | 12 | 25,9 | 42.4 | 22 | 24 | |
1DN-22-08 | M22X1.5 | Z1 / 2" X14 | 14 | 27,4 | 45.4 | 24 | 27 | |
1DN-24-08 | M24X1.5 | Z1 / 2" X14 | 16 | 26,9 | 45.4 | 27 | 30 | |
1DN-30-12 | M30X2 | Z3 / 4" X14 | 20 | 28,4 | 49.9 | 32 | 36 | 40S |
1DN-36-12 | M36X2 | Z3 / 4" X14 | 25 | 30,9 | 34,0 | 41 | 46 | |
1DN-36-16 | M36X2 | Z1" X11.5 | 25 | 35.3 | 59.3 | 41 | 46 | |
1DN-42-16 | M42X2 | Z1" X11.5 | 30 | 35.8 | 59.3 | 46 | 46 | |
1DN-42-20 | M42X2 | Z1.1 / 4" X11.5 | 30 | 36,3 | 62,8 | 46 | 50 | |
1DN-52-24 | M52X2 | Z1.1 / 2" X11.5 | 38 | 39.8 | 70,8 | 55 | 60 | |
Huomautus: Jos olet kiinnostunut tilaamaan sovittimen täydelliseen sarjaan leikkurirenkaalla ja mutterilla, on tarpeen lisätä jälkiliite "RN" osan nro. esimerkiksi 10N-30-12RN. | ||||||||
Suositut Tagit: DIN-liittimet, Kiina, valmistajat, toimittajat, räätälöity, messinki, swagelok, Parker, Stauff, Brennan, ruostumaton teräs
